Product Catalog

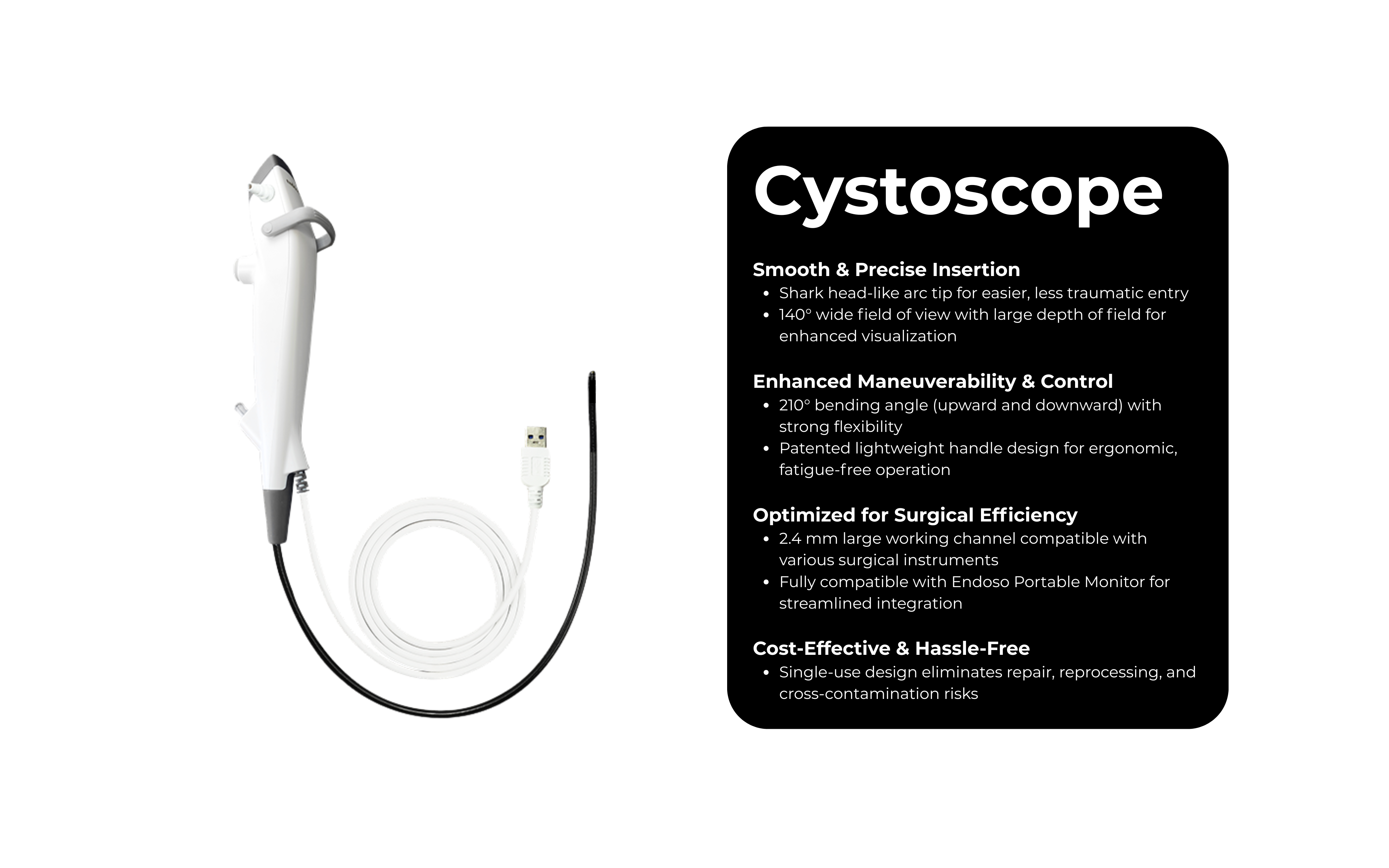

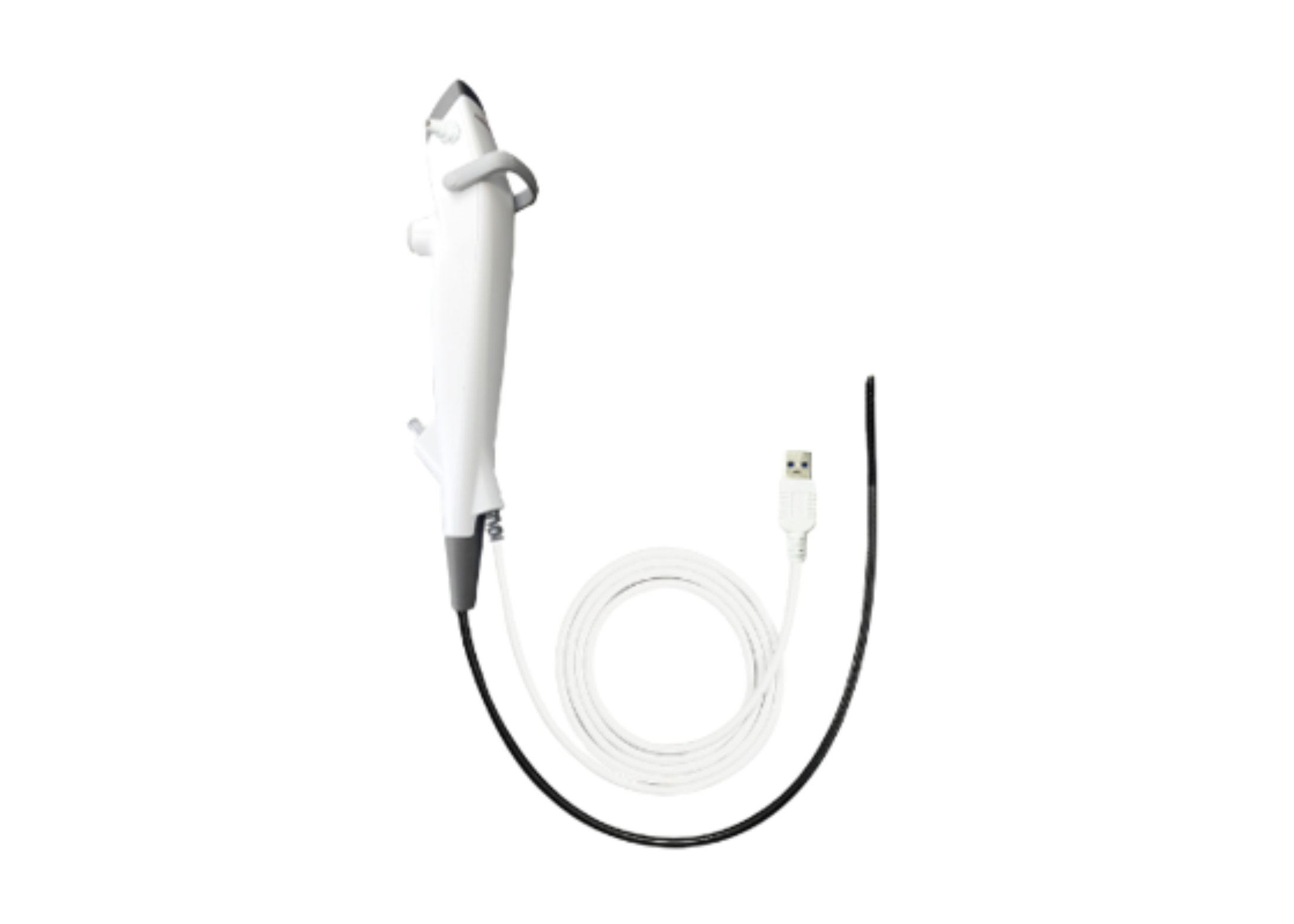

SINGLE-USE

Cystoscope

Working length 380 mm ±3%
Maximum insertion width: 5.8 mm
Minimum working channel diameter 2.2 mm
Field of view 120° ±15%
Direction of view 0° (±10° max)
Depth of field 3 – 50 mm
Resolution ≥7 line pairs/mm
Illumination ≥500 lux at 50 mm
Deflection angle 208°
Illumination uniformity ≤25% (across 4 directions)

SINGLE-USE

Ureteroscope

Working length 380 mm ±3%
Maximum insertion width: 5.8 mm
Minimum working channel diameter 2.2 mm
Field of view 120° ±15%
Direction of view 0° (±10° max)
Depth of field 3 – 50 mm
Resolution ≥7 line pairs/mm
Illumination ≥500 lux at 50 mm
Deflection angle 208°
Illumination uniformity ≤25% (across 4 directions)
